Clean and dry the spot, apply one drop of MOLY, connect the 9V battery through the connector, and touch only the connector's negative (–) prong to the drop. Read the color within 30 seconds: black that stays black is consistent with SS 202, red that fades quickly with SS 304, and red that stays red with SS 316.
MOLY is an electrolyte testing liquid. This moly drop test procedure (also called the molybdenum drop test) uses it with a 9V battery, and the same steps apply whether you are checking SS 202, 304 or 316. The rest of this guide covers what most pages skip: how to prepare the surface, what to do with curved or vertical steel, how to handle an unclear color, and the mistakes that cause misreads. If you are new to home testing, our guide to testing stainless steel grade at home gives the wider picture.
What You Need

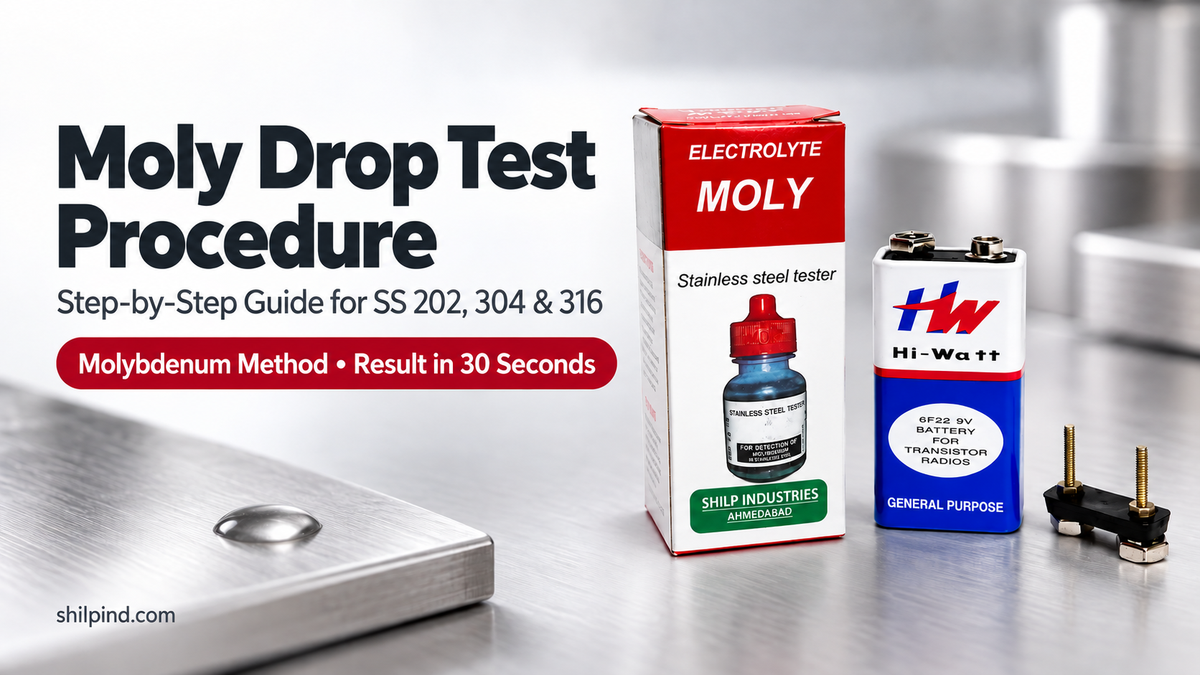

Each MOLY kit contains:
- 15 ml MOLY testing liquid
- 1 × 9V battery
- 1 × two-pronged connector clip
Store the MOLY liquid refrigerated; its shelf life is about 12 months. Keep a clean cloth or tissue nearby. If you have a small piece of steel of known grade, keep it handy too, because testing it beside the unknown piece is the best way to settle an unclear result.
Prepare the Surface First
Surface preparation is one of the most important parts of the test. The drop must touch bare steel.
- Clean off dust, dirt and residue.
- Degrease if the piece is oily or has food residue, then let it dry completely.
- Remove coatings. The drop needs to touch bare steel, so remove paint, powder coating or protective film from a small spot first. Pick an inconspicuous place, since spot tests can leave a mark.
Moly Drop Test Method: How to Verify with MOLY, Step by Step
This is the complete 9V battery stainless steel test procedure for SS 202, 304 and 316 with MOLY:
- Clean and dry the test spot as described above.
- Apply one drop of MOLY to the bare metal. Do not use more.
- Connect the 9V battery using the supplied connector clip.
- Touch only the connector's negative (–) prong to the drop. Not both prongs.
- Watch the color. Full result is visible within 30 seconds.
- Read and note the result, then wipe the spot clean.
Warning: which prong touches the drop? Only the negative (–) prong. Never put both prongs into the drop, and never let the two prongs touch each other.
Some websites describe a different prong arrangement. For MOLY, follow the steps in this guide.
You can order the kit here: MOLY stainless steel testing liquid.
How long to wait
For MOLY, read the result within 30 seconds. Chemical-only drop products used elsewhere can take several minutes, but that timing does not apply here. Do not wait minutes for a MOLY result.
Moly Drop Test Color Change: How to Read the Result
| What you see | Consistent with |
|---|---|
| Black, stays black | SS 202 |
| Red, fades quickly | SS 304 |
| Red, stays red | SS 316 |
In a moly drop test on 304 or 316, both turn red; what separates them is whether the red fades or stays. This is MOLY's color chart. Treat red-that-stays as consistent with 316, not as a laboratory certificate: other molybdenum-bearing grades can also react, and the test cannot separate 304 from 304L or 316 from 316L. Use only this chart for MOLY and never a color chart from a different product.
If the Result Is Unclear
If your moly drop test result is unclear, do not guess the grade. Work through this order:
- Replace the battery with a fresh 9V.
- Check that the connector is clean and firmly connected.
- Confirm only the negative (–) prong touched the drop.
- Re-clean and dry a fresh spot and repeat.
- If you have steel of known grade, test it beside the unknown piece.
- If it is still unclear, record the result as inconclusive.
Repeating the same faulty setup will only repeat the same faulty result. Fix the likely cause first.
Special Situations
Rooftop tanks
The kit runs on its own 9V battery, so no power outlet is needed. Prepare a small clean patch and test as usual. Never climb or lean unsafely just to run a test.
Curved surfaces
Choose a small spot where the drop stays in place long enough to be read.
Welds
Clean a patch of the weld and test it, then test the parent metal separately. Weld metal and parent metal may not match, so do not assume one result covers both.
Small fasteners
Use the largest flat face and steady the part. If the drop will not stay put or contact is unreliable, the result is not dependable.
Vertical panels
Use one small drop on a spot where it stays. If it runs before you can read it, move to another location or a flatter surface and repeat.
Polished finished items
The steps are the same. Test an inconspicuous spot, clean and degrease it, and expose bare metal if there is a coating. A raw sheet mainly needs oil and dirt removed.
Cold weather
No reliable MOLY-specific low-temperature limit is available. If the reaction seems unusually slow in very cold conditions, do not read it straight away; repeat on a fresh prepared spot and treat a still-faint result as unclear.
Common Moly Drop Test Mistakes That Cause Misreads
- Touching the wrong prong, or putting both prongs into the drop
- Using a weak battery or a loose, corroded connector
- Testing over grease, dirt, paint or any coating
- Adding too much liquid so the drop runs
- Reading too early or after too long
- Reading colors in poor light
- Using MOLY past its shelf life (about 12 months) or not storing it refrigerated
- Treating an unclear color as a final answer
More on avoidable errors is in our article on common mistakes when testing stainless steel at home.
Safety and Cleanup
The supplied 9V battery is a low-voltage source, but avoid shorting its terminals: if metal bridges both battery terminals, or the prongs touch, it can heat up. Keep the prongs apart and store the battery away from loose metal.
Treat the liquid as a laboratory chemical: keep it away from children, avoid skin and eye contact, and if it touches your skin or eyes, rinse with plenty of water and seek medical advice if irritation continues. Wipe the tested spot with a cloth or tissue and clean the surface afterwards. Do not improvise any neutralising method, and store leftover liquid refrigerated as described above.
Household Checking vs a Formal SOP
The basic field-testing sequence may be similar, but formal pharma and industrial procedures can add documented responsibilities, scope and a recorded result. This guide is for household and small-business checking. It does not replace a customer's formal material-qualification system.
Frequently Asked Questions
What is the exact step-by-step procedure for the moly drop test?
Clean and dry the spot, apply one drop of MOLY, connect the 9V battery through the connector, and touch only the negative (–) prong to the drop. Read the color within 30 seconds, then wipe the spot clean.
Which terminal (positive/negative) should touch the drop?
The negative (–) prong only. Do not put both prongs into the drop. Some websites describe a different prong arrangement, but for MOLY follow this instruction.
Can I use a 1.5V battery instead of 9V?
Use the 9V battery supplied with MOLY. We have not found a reliable source showing that a 1.5V battery works as a substitute with this connector setup, so do not swap it.
How exactly do I connect the battery and connector correctly?
Snap the supplied connector onto the terminals of the 9V battery, and keep the two prongs from touching each other or any metal object. Apply the drop and touch only the negative (–) prong to it.
What voltage/current is needed for the reaction to work?
MOLY is designed for a 9V battery. A required current figure is not published, so we do not quote one; simply use a fresh 9V battery.
How long should I wait before reading the result?
Read the result within 30 seconds, when the full result is visible. Waits of several minutes apply to other chemical-only products, not to the MOLY procedure.
What surface preparation is needed before testing?
The spot must be bare steel that is clean, dry and free of oil, grease, dust and coating. The drop has to touch the steel itself, not a film on top of it.
Do I need to clean/degrease the surface first?
Yes. Oil, grease or food residue can stop the drop touching the metal properly, so wipe the spot clean, degrease it if needed and let it dry fully before testing.
Can I test a painted/coated surface, or must metal be exposed?
The drop needs to touch bare steel, so remove the coating from a small spot first. Choose an inconspicuous place, since the test can leave a mark.
Is there a risk of electric shock connecting the battery clip?
The supplied 9V battery is a low-voltage source, but avoid shorting its terminals or letting the connector prongs touch each other. A metal object bridging both battery terminals can cause heat, so store the battery away from loose metal.
How do I test rooftop tanks with no power outlet nearby?
The 9V battery powers the kit, so no mains outlet is needed. Prepare a small clean patch and test as usual, and put your own safety first when working at height.
How do I test curved surfaces, welds, or small fasteners?
Choose a small spot where the drop stays put. For welds, test a cleaned patch of the weld and the parent metal separately, since they may not match. For small fasteners, use the largest flat face and steady the part; if the drop will not stay, the result is not reliable.
Can a weak battery alter timing or give a wrong result?
We have no published data on exactly how a weak battery changes the result. Use a fresh 9V battery, and treat a faint or slow reaction as unclear, not as a grade result.
What should I do if the result is ambiguous?
Do not guess the grade. Check the battery, connector and prong, clean a fresh spot and repeat, and compare with a piece of known steel if you have one. If it is still unclear, treat the result as inconclusive.
How does the procedure differ for pharma/industrial SOPs vs household use?
The basic field-testing sequence may be similar, but formal SOPs can add documented responsibilities, scope and a recorded result. This guide is for household and small-business checking and does not replace a customer's formal material-qualification system.
What's the correct amount of liquid per test?
One drop. Extra liquid can run off the spot, and the 1–2 drop instructions of other products do not apply to MOLY.
Can I record the test on video as dispute/return proof?
Yes, filming is a sensible practical record, though we make no legal claim about its value. Keep one continuous shot showing the item, the clean spot, the drop, the negative prong touching it and the final color.
Should I redo the test if the first result is unclear?
Yes, but fix the likely cause first, whether battery, connector, prong or surface. Then test a fresh, prepared spot rather than repeating the same setup.
How do I safely dispose of used liquid and residue?
Wipe the spot with a cloth or tissue and clean the surface. Do not improvise any neutralising method, and store leftover liquid refrigerated.
Can the test be done in freezing winter temperatures?
No reliable MOLY-specific low-temperature limit is available. If the reaction seems unusually slow in very cold conditions, do not read it straight away; repeat on a fresh prepared spot and treat a still-faint result as unclear.
Does testing a vertical panel cause the drop to run before reacting?
It can if the drop is too large or the panel is steep. Use one small drop on a spot where it stays put, and if it runs before you can read it, move to another location or a flatter surface and repeat.
What common mistakes cause misread results?
The usual causes are the wrong prong or both prongs in the drop, a weak battery or loose connector, and a greasy, dirty or coated surface. Too much liquid, reading too early or late, poor lighting, expired or unrefrigerated liquid, and treating an unclear result as final also cause misreads.
How is the procedure documented in a formal equipment-qualification SOP?
A typical SOP lists purpose, scope, responsibility, the step-by-step procedure and a recorded result.
Can I test without a battery at all, using only chemical?
MOLY needs its 9V battery. Chemical-only products exist, but they are different products with different timing and color charts, so do not use MOLY without the battery or mix the methods.
Does procedure differ for a finished polished item vs a raw sheet?
The steps are the same and only the preparation differs. On a polished finished item, test an inconspicuous spot, clean and degrease it, and expose bare metal if coated; a raw sheet mainly needs oil and dirt removed.
Check your stainless steel grade with MOLY →
